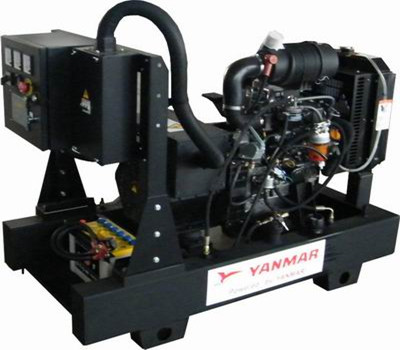

Automatic industrial 10kva yanmar diesel generator with 3TNV82A engine synchronous alternator
Genset Features:
1. Genuine Japan Yanmar industrial diesel engine
2. Radiator 50°C max, fans are driven by belt, with safety guard
3. Genuine stamford. Leroy somer, marathon alternator
4. Choice of manual/auto and AMF control panels and protection systems
5. Digital auto-start panel
6. Anti Vibration Suspension Absorber
7. Dry type air filter, fuel filter, oil filter
8. 10-hour operation base tank
9.Mould case circuit breaker
10. 24V DC start motor and storage battery
11. 24V charge alternator
12. 24V batteries, rack and cable
13. Rippl;e flex echaust pipe, exhaust siphon, flange, and muffler
14. Comply with ISO and CE standards
Specifications:
| Yanmar diesel generator set |
| GEN-SETS | Model | GNRY10 |
| Engine Brand | Yanmar |
| Rated Output(kva) | 10 |
| Current(A) | 14.4 |
| Power factor(cosφ) | 0.8 |
| Frequency(hz) | 50/60 |
| Fuel Consumption(g/kw.h) | ≤252 |
| The regulating rate of instantaneous voltage | ≤-10%/ +15% |
| The time of steady voltage | ≤1.5sec |
| The waving rate of voltage | ≤0.5% |
| The regulating rate of steady frequency | ≤3% |
| The regulating rate of instantaneous frequency | ≤±5% |
| The time of steady frequency | 3sec |
| The waving rate of frequency | ≤0.25% |
| Dim L×W×H(mm) | 1200X700X1100 |
| Weight(kg) | 310 |
| Diesel engine | Engine model | 3TNV82A |
| Cylinder | 3 |
| Bore*Stroke(mm) | 77*81 |
| Lubricating oil capacity | 4.9 |
| Rated speed(rpm) | 1500/1800 |
| Cooling method | Closed water cooling |
| Starting system | Electrical start |
| Displacement(L) | 1.13 |
| Alternator | Brand | Stamford/Marathon/ |
| Type | Brushless |
| The connecting way of the phase | Three phases four lines |
| Insulation degree | H degree |
| Grading Protection | IP23 |
Alternator
Engine can be coupled with A.C.synchronous brushless alternator( new-style designed by ourselves,with update international technology). It can also be matched with STAMFORD,LEORY SOMER, MARATHON alternator according to customers’ demand.
Gensets can be open type or soundproof (silent) type.
Controller system
1.Standard control panel, including voltmeter, fequency meter, ampere meter,water temperature gauge, oil temperature gauge, oil pressure gauge, AMF control module,oil level indicator, emergency button,preheating button, battery voltage gauge, hours running counter for protection and tranfering.
2.It can be with ATS electric control cabinet, including circuit breaker, LCD or LED auto controller, indicating lamp, transfer switch,etc.. Automatic transfer switch (ATS) uses update technology, which can be automatic control for on-off electricity, remote monitoring, automatic parallel operation
